Hydrogen Fuel Intercity Bus - U11F
Hydrogen-Powered Travel, Zero Carbon Expert
Comfortable Driving and Riding to Enjoy Your Journey

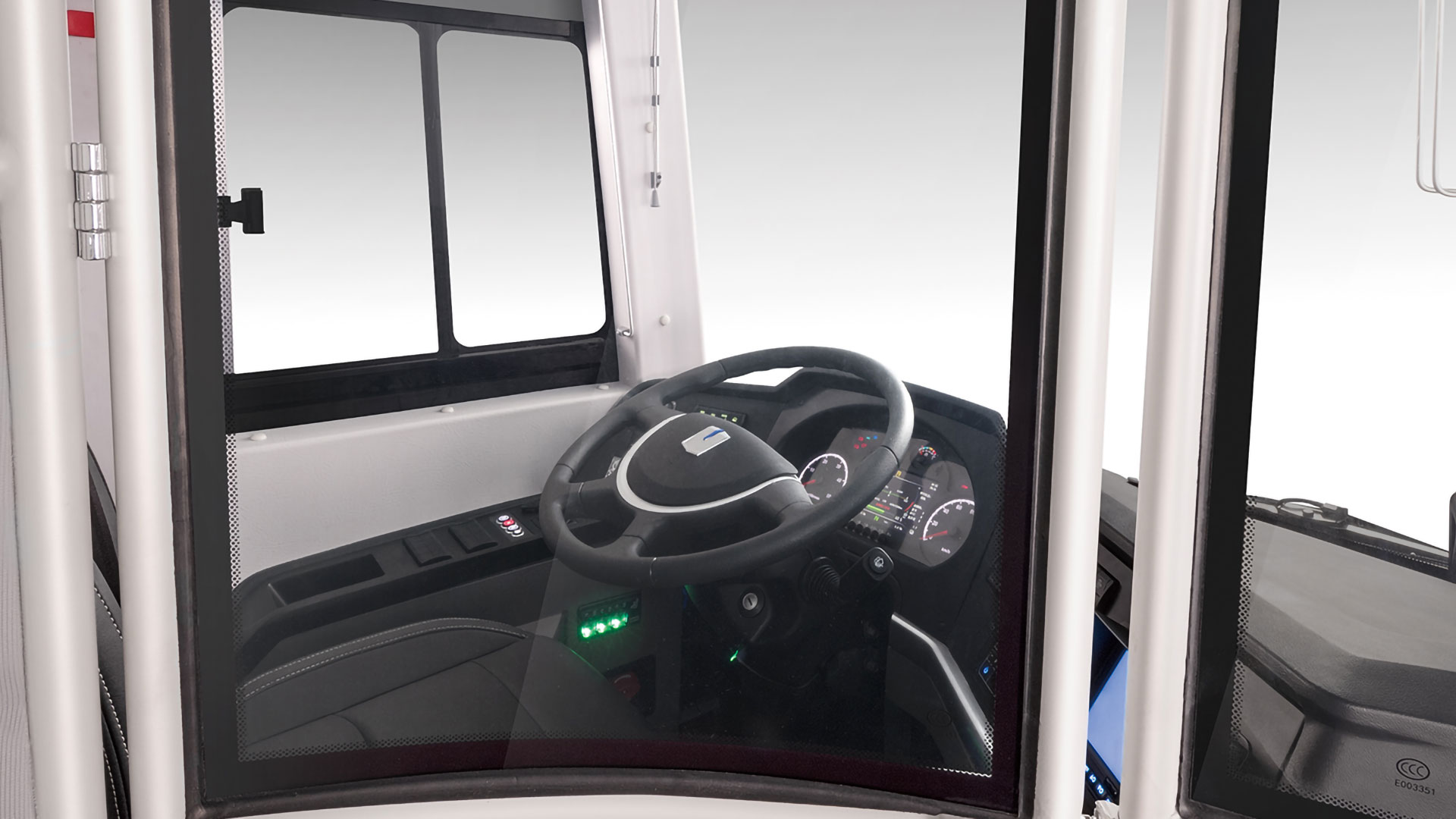

Equipped with a multifunctional steering wheel and an audio-visual assisted driving system, , as well as USB charging ports and a surround sound system.
Comfortable Driving and Riding to Enjoy Your Journey

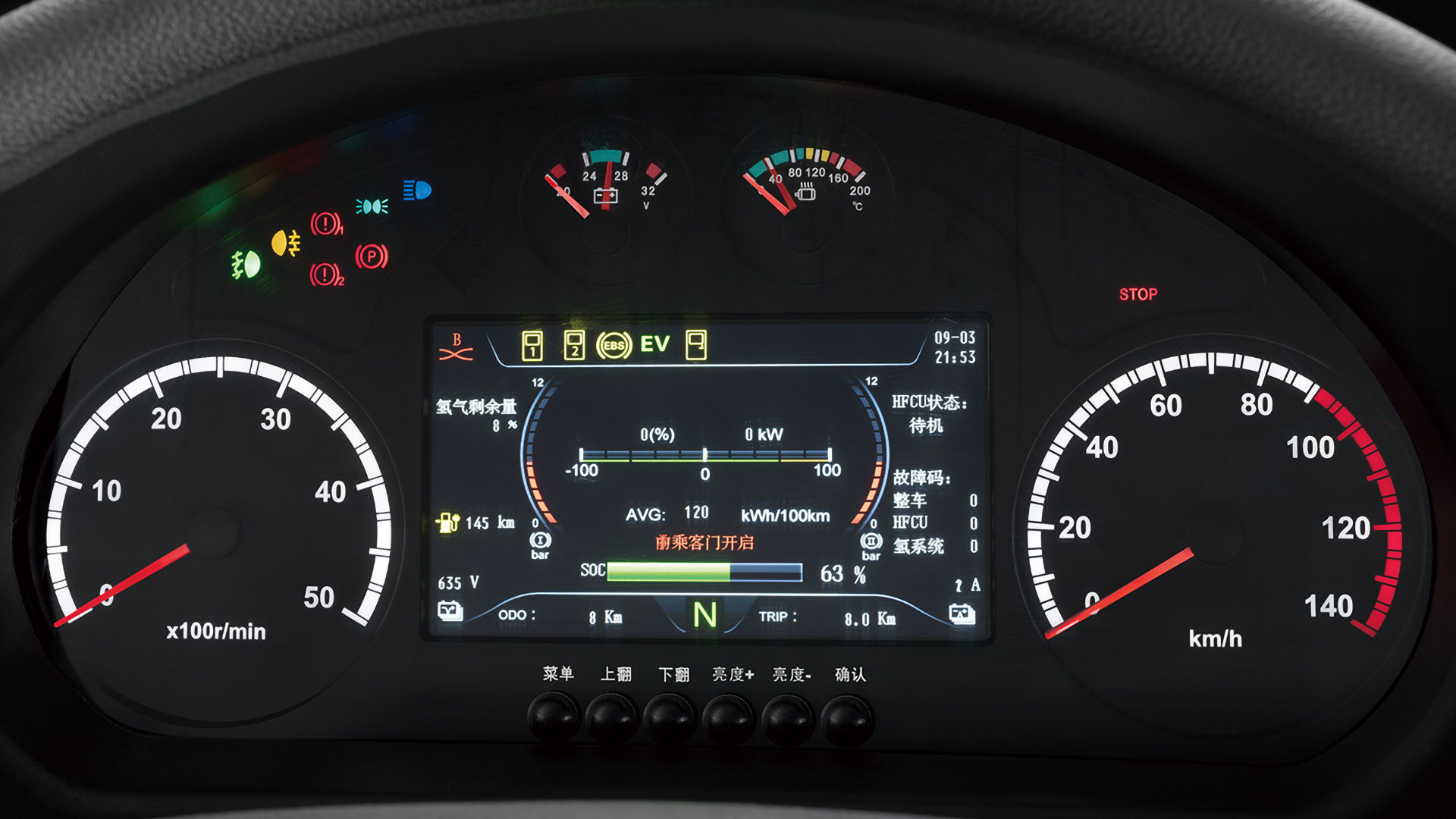

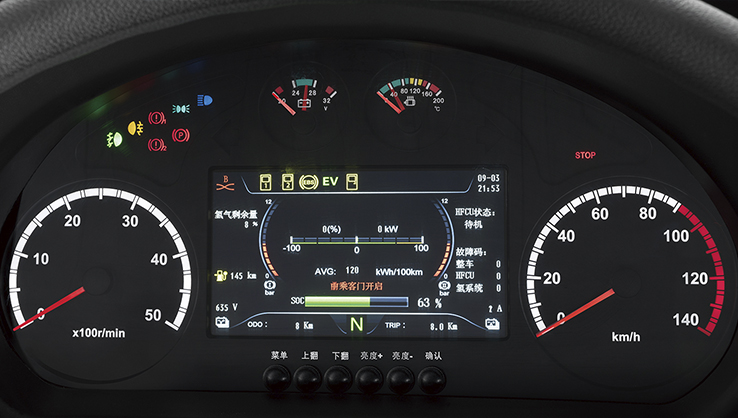

Equipped with a wrap-around instrument layout and airbag-cushioned ventilated heat seats, the vehicle offers an enjoyable driving experience.

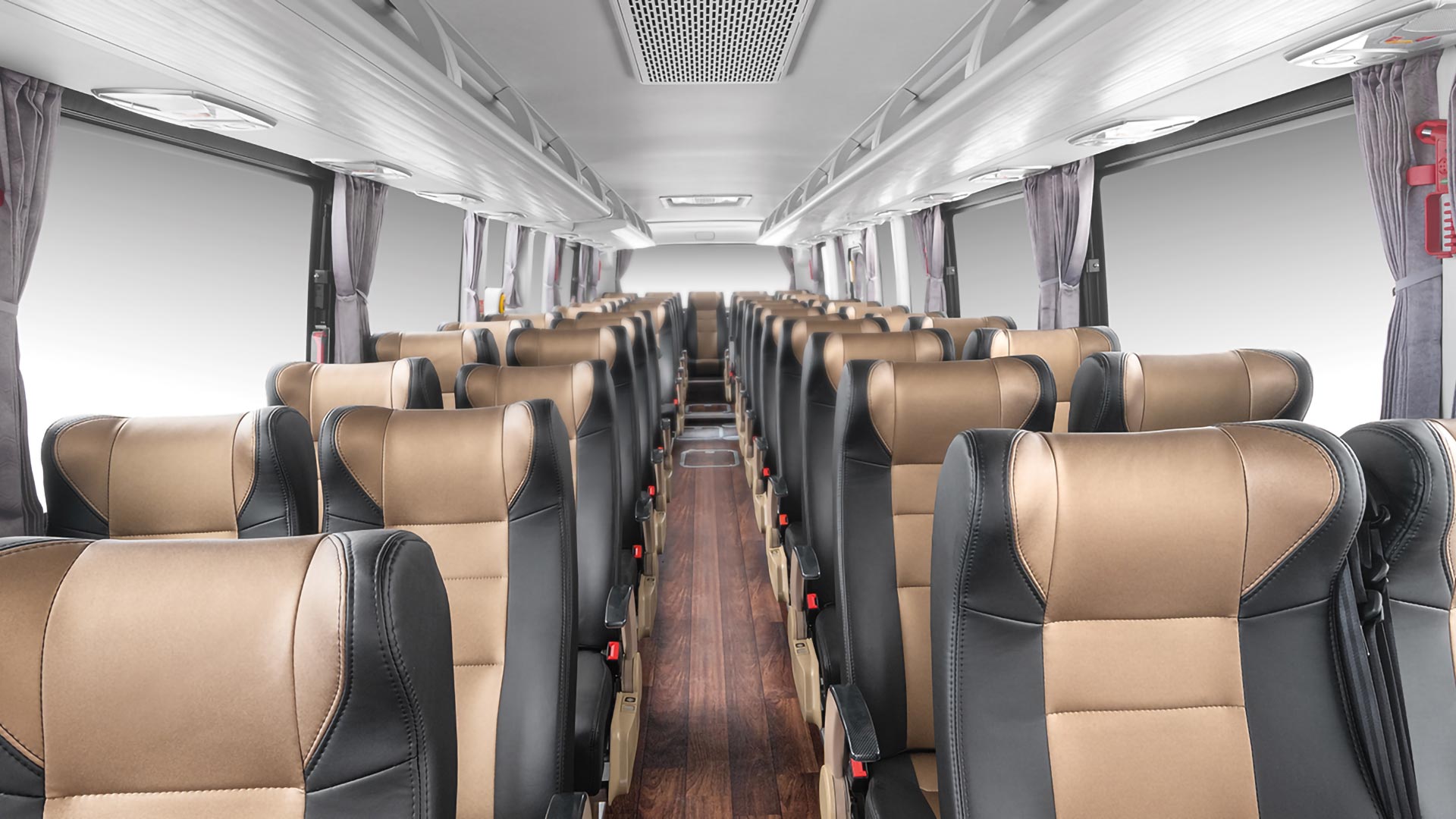

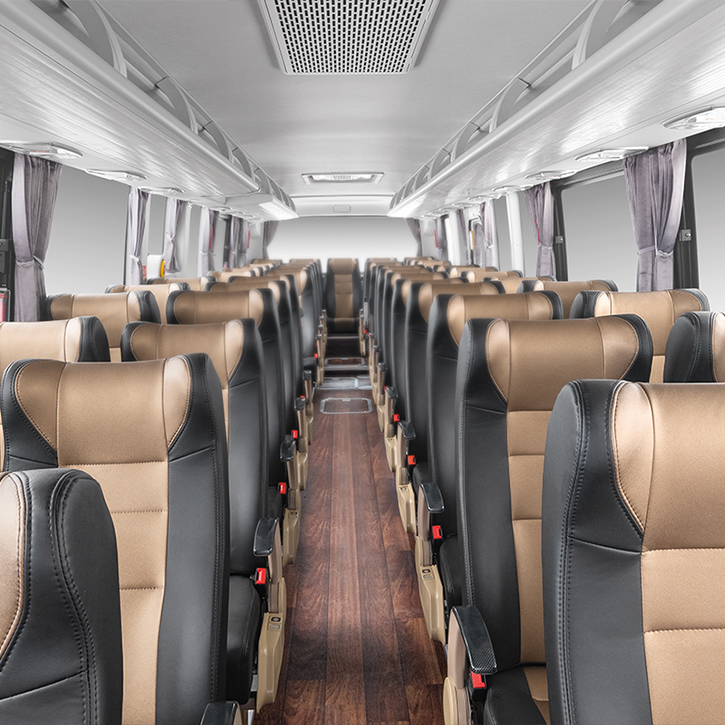

High-end business seats with a seat pitch of 720 mm offer excellent comfort.
Equipped with USB charging ports and a surround sound system.
Reliable, Energy-Efficient and Efficient Operation
Featuring a 120 kW high-power fuel cell system, it can operate in environments ranging from -35℃ to 42℃.
With recharging completed within 10 minutes, its maximum range can reach up to 450 kilometers, consuming 6.5 kilograms of hydrogen per 100 kilometers.
Safety Assurance and Worry-Free Hydrogen Travel

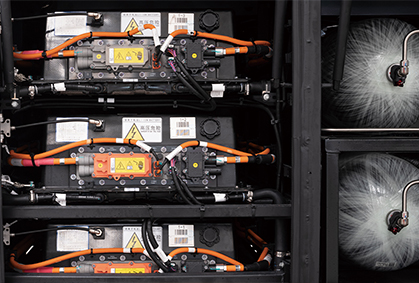

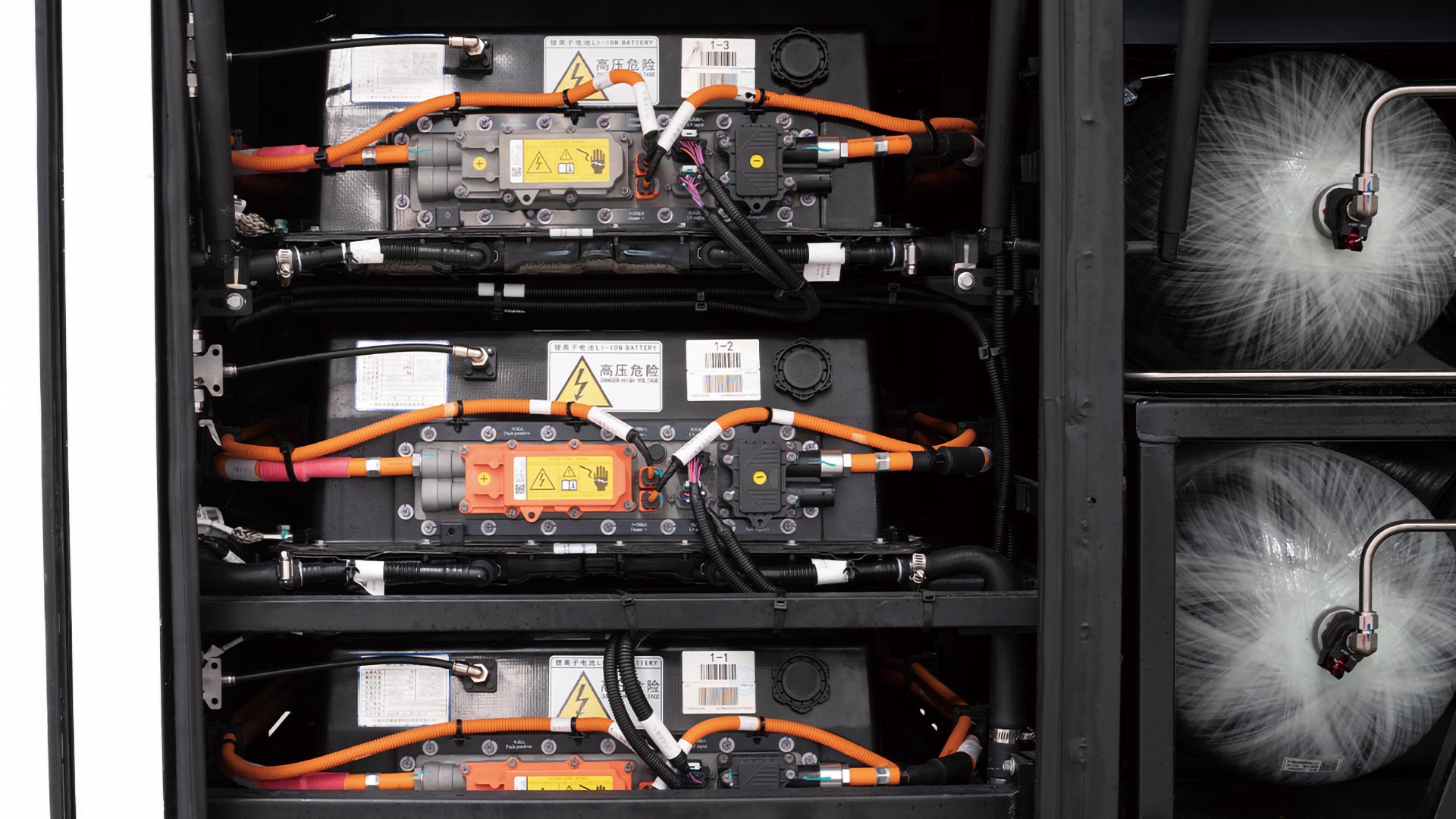

It adopts 7 hydrogen safety strategies and is equipped with high-strength hydrogen tanks, utilizing anti-static technology to ensure hydrogen safety. With 7 high-voltage controls, 8 functional strategies, and 12 intelligent driving assistance technologies, along with an upgrade to IP68 for its three-electric protection levels, it comprises features like anti-misstep accelerator and brake prioritization, significantly enhancing the overall safety performance of the vehicle.
Galleries
| item | U11F | |
| Technical parameter | Length*width*height（mm） | 10990*2550*3660 |
| Number of passengers | 24-46 | |
| top speed（km/h） | 100 | |
| Total mass(kg) | 12600 | |
| maximum total mass(kg) | 16500 | |
| Battery capacity（kwh） | 140 | |
| Mileage under working condition （km） | 450 | |
| Main configuration | body structure | Full bearing, Low entry |
| Drive motor | Permanent magnet synchronous motor, liquid cooling | |
| Vehicle power/peak power (kW) | 215/350 | |
| torque | 1200/2800 | |
| /peak torque (N.m) | ||
| Suspension system | air suspension | |
| Type of air condition | Electric heating and cooling (heat pump PTC) | |
| Approach / departure angle(°) | 9/9 | |
| Luggage space（m3） | 0-1.5 | |
| Battery cooling system | air suspension | |
| braking system | Dual circuit pneumatic brake | |
| Body stability control | ESC | |
| steering system | Dual source electrohydraulic power steering system | |
| Fuel cell Engine system Rating (kW) | 120 | |
| Hydrogen storage tank volume (L) | 1120（8） | |
